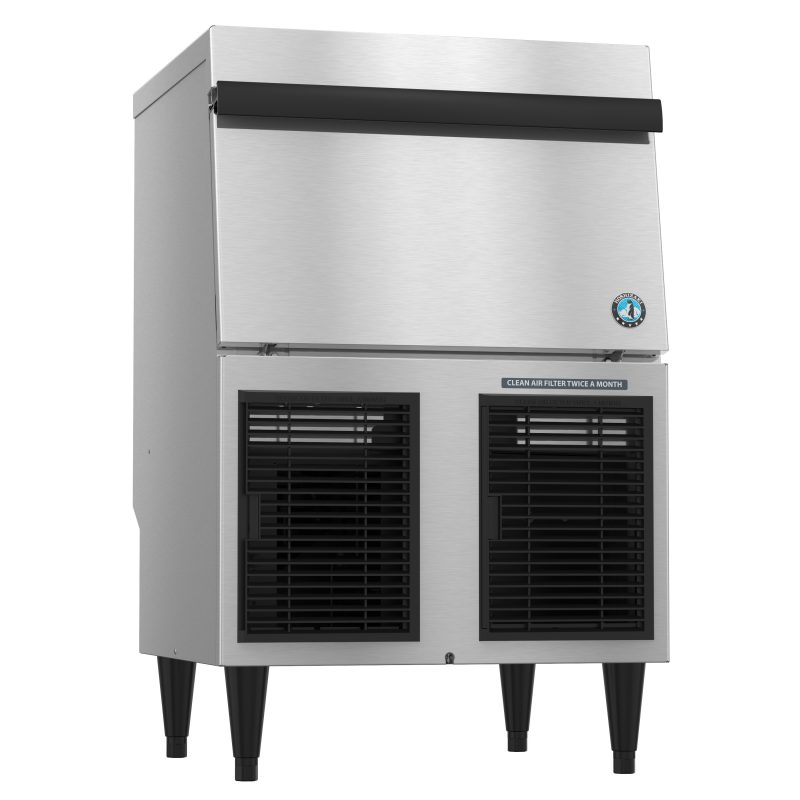

Hoshizaki Air Cooled 332lb Undercounter Flaker (F-330BAJ)


Hoshizaki Air Cooled 332lb Undercounter Flaker (F-330BAJ)

Introducing the Hoshizaki Air Cooled 332lb Undercounter Flaker (F-330BAJ), a top-tier solution for high-volume ice production in compact spaces. Crafted with precision and efficiency in mind, this undercounter flaker is designed to meet the demanding ice needs of commercial environments with limited space. With a remarkable production capacity of 332 pounds of ice per day, it ensures a steady supply of flaked ice for various applications including beverage presentation, food displays, and therapeutic uses. The air-cooled design maximizes efficiency while minimizing energy consumption, making it both eco-friendly and cost-effective. Its compact footprint allows for versatile installation options, fitting seamlessly into tight spaces beneath counters or bars. Built with durable materials and advanced technology, this flaker delivers consistent performance and long-lasting reliability.


  • Dimensions: 24″ W x 26″ D x 39″ H
  • Up to 332 lbs of ice produced per 24 hours
  • Up to 80 lbs of built-in storage capacity (2.7ft3)
  • Produces flaked ice
  • Durable stainless steel exterior
  • Front in, front out airflow
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • Protected by H-GUARD Plus Antimicrobial Agent
  • R-404A refrigerant (7.1 oz. / 200 g)
  • Heat Rejection:3400 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 6.9 amps (15 Amp Max fuse)
  • 5.91 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Spec Sheet

Shipping Information

Weight 178 lbs
Dimensions 28 × 26 × 42 in
